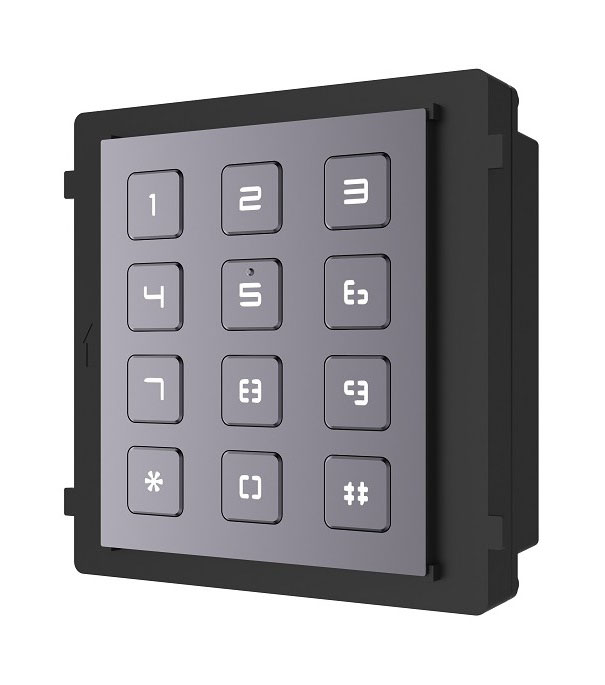

DS-KD-KP
Keypad Module for Hikvision IP Video Intercome Flush/Surface mount
Módulo de apertura con teclado para videoportero exterior IP modular superficie/empotrado
Soporta desbloqueo de puerta con contraseña
Soporta llamada con número de puerta
Se alimenta desde el módulo principal 12 Vdc
Retroiluminado. Montaje superficie y empotrado
Protección IP65 Antivadálico IK7
.
Parámetros del sistema
Procesador Procesador MCU integrado
Método de operación Botón físico
Interfaces
Módulo de conexión 2 (1 entrada, 1 salida)
Depurar 1
General
Botón físico 12
Interruptor DIP 8
Entrada de energía 12 VCC (alimentado por el otro módulo)
Potencia de salida 12 VCC (alimentada para el otro módulo)
Consumo de energía ≤2 W
Temperatura de trabajo -40 ° C a + 55 ° C (-40 ° F a 131 ° F)
Humedad de trabajo del 10% al 95%
Nivel de protección IP65, IK7
Instalación Montaje empotrado, montaje en superficie
Dimensiones (la. × an. × al.) 98,5 mm × 100 mm × 34,2 mm (3,87 "× 3,95" × 1,33 ")
